Drift Boat Plans For Building A
Don Hill Designed McKenzie River Drift Boat.

boat

Plans, Video and Assembly Manual

• PLEASE READ •

Don began his boat building career in the early 60's, hanging out in the shops of Tom Kaarhus (considered the father of the McKenzie Drift Boat) and his son Joe, as well as with Keith Steel and Woody Hindman. Don wanted to learn because he wanted to build a boat for himself. After that, it was building boats for his friends which then grew into his own boat building business. Don's early boats followed the design of Keith Steel boats. Then in the mid 80's Don made some innovative design changes to the angle of the bow and the flare on the sides, making the boat handle much easier in rapids and standing waves. You can tell a Don Hill boat by the angle on the bow.

Don spent over 40 years building boats and fish guiding in the Pacific Northwest and Alaska, and these plans reflect all that experience. Don's good friend Kenny King, the Fly Fishing Hall of Fame Guide, used Don's boats for over 20 years.

Over 40 years of research, design and testing and thousands of dollars have gone into the development of the Boat Plans and assembly manuals. There are no finer or more complete Drift Boat Plans available anywhere in the world today at any price.

See specifications below.

The plans are a complete set of 24 pages of orthographic drawings showing every detail of the parts needed to build a McKenzie River Drift Boat. Detailed layouts of all parts, bolt and screw sizes and patterns. With each set of plans we include 4 sheets of tracing patterns that are for pieces that are too hard to describe in drawings, a 24 page assembly manual with 88 photos and video download, in which Don narrates the building of a boat, showing you how to construct the boat, from start to finish. These plans show every dimension, angle, materials and all hardware needed for the boat builder. Links and info for scarfing the plywood are included, it is not as difficult as it sounds.

The boats are built the traditional way entirely with wood. Simply make all the parts per the layouts in the plans and put them together using the video and manual as guides. Rib frame construction, no tracing patterns for hull or ribs needed, no stitch and glue, no fiberglass is used. No strong back or any sort of form is needed, only the usual wood working tools.

NO LOFTING OR LAYOUTS REQUIRED!

Help with understanding the plans and construction is available!

US Coast Guard capacity label included.



Testimonial by Andrew Richter



Don, Having built my 16' from plans nearly 10 years back I feel the need to continue thanking you for the wonderfully drafted and easy to follow plans. Also, for your help when I remember calling for it.

The boat has recently been in limbo due to job commitments and travel. Fortunately we are moving tomorrow to a new home on the banks of one Michigan's steelhead and salmon rivers. Before the needed hot water tank is installed, before the dog's fence put up...I went back to get my boat out of storage and bring her home. I can't wait to be behind her oars chasing big fish and enjoying the compliments I regularly receive while floating.

Thanks for the pleasure your efforts have delivered.





Specifications

Model
Gunwale
Length
Center
Length
Beam
Bottom
Width
Bow
Height
Transom
Height
Height at
Oarlocks
Boat
Weight
Carrying
Capacity

18FF

18'

16'1"

84"

57"

40"

27"

23"

375

1200

17FF

17'

15'10"

82"

54"

36"

27"

24"

350

1050

16HS

16'

14'8"

75.5"

48"

39"

24.5"

27"

270

850

16ST

16'

14'8"

73"

48"

37"

21.5"

24"

225

800

14ST

14'

12'10"

67"

48"

32.5"

20"

22"

180

650

10MD

10'

9'6"

62"

47"

27"

22"

19"

135

350


The transoms on these boats allow motors up to 9.5 horse for the 16', 17' and 18'. Small electric motors for the Mini Drifter.



Materials & Tools

All the designs call for marine plywood, 1/4" for the hull and 1/2" for the bottom (except 3/8" for 10' Mini). Scarfing the plywood will be needed. Links and info for scarfing the plywood are included, it is not as difficult as it sounds. Find marine plywood by searching on net for "marine plywood (your state)".
Hull lengths needed (sizes indicate 1 finished piece, both hull pieces are cut from 1 sheet):
18 Foot Fly Fisherman -

• Hull - 4' x 18' (3 - 4' x 8' sheets for hull & 1 sheet for rub strips) 4 total

• Bottom - 5' x 15' (3 - 4' x 8' sheets for bottom & 1 sheet for floor boards) 4 total
17 Foot Fly Fisherman -

• Hull - 4' x 17' (3 - 4' x 8' sheets for hull & 1 sheet for rub strips) 4 total

• Bottom - 5' x 15' (3 - 4' x 8' sheets for bottom & 1 sheet for floor boards) 4 total
16 Foot Standard -

• Hull - 4' x 16' (3 - 4' x 8' sheets for hull & 1 sheet for rub strips, can be built to with 2 sheets) 4 total

• Bottom - 4' x 14' (2 sheets for bottom & 1 sheet for floor boards) 3 total
14 Foot Standard -

• Hull - 4' x 14' (2 - 4' x 8' sheets for hull & 1 sheet for rub strips) 3 total

• Bottom - 4' x 12' (2- 4' x 8' sheets for bottom & 1 sheet for floor boards) 3 total
10 Foot Mini Drifter -

• Hull - 4' x 10' (2- 4' x 8' sheets for hull & 1 sheet for rub strips) 3 total

• Bottom - 4' x 8" x 3/8" (1 sheet for bottom & 1 sheet for floor boards) 2 total



Any hardwood will do for the handrails and ribs etc, Oak is fine but I recommend White Ash.

Any marine plywood will work but Meranti or Hydrotek is the most cost effective. Oakume works well and Sapele makes a beautiful boat but is expensive and a bit heavier.

Marine epoxy - Don recommends coating the hull and bottom pieces both sides with marine epoxy after they are cut. It seals real good and adds strength to the plywood. If you plan to stain the hull, you will want to do that first before scarfing the plywood. West System is the best and they have great info on applying it, but there are others like Totalboat.com. A gallon or so will do for a 16' standard.

Finishes - Use good marine urethane varish or marine paint with good UV holdout, you will be sorry if you use cheap stuff. Look at bottom of page.

UHMW plastic is sometimes used on the bottom of boats but putting it on is a tough job and if not done correctly will destroy the bottom of the boat. I recommend Coat-It, it is remarkable stuff. Look at bottom of page.

Stainless steel screws and bolts, square drive screws are best.

3M 5200 caulking (2 tubes) for the bottom chine battens. Amazing stuff, will not degrade, statys a bit flexible and does not dry out.



Tools needed would be a table saw, variable speed reversable drill, belt sander, hand saw, 5 6" Clamps, skill saw, adjustable #8 counter synk and screw driver bits for drill. A chop saw is handy. Other useful tools that can be rented for the short time you use them are an electric planer, router and saber saw.



Cost - I have heard of boats being built for $250 out of construction grade materials, but I think you would want something better looking and of better quality after putting in the work to build a boat which will take about 150 hours give or take. $900 to $1200 should build a fine boat.

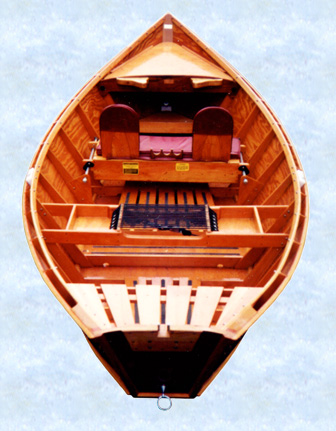

interior

The Models

Plans w/Construction Manual &
Video Download (DVD $5 extra)

A Link Will Be Sent With Shipping Info

DVD

To Order The Video Separately
including shipping

Price Video DVD $20

Call 619.784.6447 9am to 6pm PST M-F

18 Foot Fly Fisherman - Model 18FF

This boat is designed by Don Hill for fly fishing the Deschutes and South Fork of the Snake Rivers. This is a big water craft with the unique design of carrying two passengers up front, one in the rear, as well as the oarsman. With a 1200 pound carrying capacity, there isn't much you'll have to leave behind on those drifts. With the big surface 4' 9" wide bottom and low sides, the craft rides higher in the water and is highly maneuverable. Designed with front deck and knee brace, 1/2 inch floorboards and sliding front seat for load balance.

Price Plans w/Video DL $90

Price Plans w/DVD $95

boat

17 Foot Fly Fisherman - Model 17FF

boat

This is the perfect size boat for guides or people who fish or take back country trips with one or two and gear. Specially designed for the fly fisherman with low sides, low bow, adjustable front seat, front deck and knee brace, 1/2 inch floorboards, sliding front seat for load balance and wide bottom for more stability.

Price Plans w/Video DL $90

Price Plans w/DVD $95

16 Foot Standard Guide - Model 16ST

Kenny King, the Fly Fishing Hall of Fame Oregon Guide, used Don's 16' Standard for
over 20 years.

The 16 foot Standard Guide Model is the good old workhorse of boats. Don Hill has guided the Deschutes, the Rogue, and all coastal and central Oregon rivers in this model and he feels that it is the best all-round boat.

The hull is constructed of a single piece of 1/4 inch 4' x 16' marine plywood with a one piece 4' x 14' 1/2 inch marine plywood bottom. Designed with front deck and knee brace, 1/2 inch floorboards and sliding front seat for load balance.

Price Plans w/Video DL $90

Price Plans w/DVD $95

boat

16 Foot High Side Guide - Model 16HS

It takes twice as much plywood for the hull as the 16' standard due to the height of the sides.

Our 16 foot High Side Guide's Model has been specially designed for guides carrying heavier loads on small technical rivers while still retaining the strong, rugged construction features of the 16 foot Standard. Call 619.784.6447 9am to 6pm PST To Order

14 Foot Standard - Model 14ST

boat

This lightweight and compact 14 foot Standard Model was custom designed by Don Hill. It's designed to be a highly controllable and maneuverable craft due mainly to the large surface area under the passenger seat. The bed of a full-size pickup will carry your 14 foot Standard where you want to go. Designed with front deck and knee brace, 1/2 inch floorboards and sliding front seat for load balance.

Price Plans w/Video DL $90

Price Plans w/DVD $95

10 Foot Mini Drifter Model 10MD

The 10 foot mini drifter has so many advantages, it's hard to list them all. It's the perfect one-man fishing boat, but two adults can comfortably stand and fish from the Mini Drifter. It's lightweight and easy to row, making it and ideal boat for beginners and an excellent boat for low water conditions. The Mini Drifter fits in the bed of a pickup or even inside a standard size van, so you won't need a boat trailer.

The wide end is the bow and points down river, angle one corner into the wave when going over drops or wave trains.

Price Plans w/Video DL $75

Price Plans w/DVD $80

boat

boat



Boat Cover & Finishes

Drift Boat Cover
boat cover
For Standard Boats up to 14' 10" centerline
Don Hill helped design this Drift Boat Cover (shown above) to fit his 16' Standard Drift Boat which measures 14' 8" centerline. It measures 15' and will fit boats up to 14' 10"' centerline with 48" bottom.

These are the size specs for the 16' boat.

Specifications

Model
Gunwale
Length
Center
Length
Beam
Bottom
Width
Bow
Height
Transom
Height
Height at
Oarlocks
Boat
Weight
Carrying
Capacity

16ST

16'

14'8"

73"

48"

37"

21.5"

24"

225

800



Its sock front slips over bow and bottom to protect them from rocks. Keeping your boat outside with a cover is not recommended due to the fact that no matter how breathable the cover there will always be condensation. Some sort of tent structure with good air flow would work.
Guaranteed by manufacturer
for 5 years - A great value!
FREE SHIPPING USA!
REQUIRES UPS DELIVERABLE ADDRESS!

The Item Has To Ship Separately
No Returns on Boat Covers

Price $375
Or Call 619.784.64479am to 6pm PST M-F

To Order


Recommended Products

coat-it
Coat-It Epoxy Sealer w/Kevlar

A waterproof epoxy sealer for fiberglass and wood with superior abrasion resistance through its reinforcement with Kevlar fibers. Apply with brush, roller, or squeegee. The 10 mil prime coat is flexible and non-shrinking in one application. Pot life of 30 minutes. Cure time: 10 hours @ 70°F. Use above or below the water line. Use with or without fiberglass reinforcement.
Great for Bottoms or Repairs
1 8 lb. can per boat





brightside

Brightside® Polyurethane is a hard, high gloss one-part polyurethane paint.
Recommended paint.



zspar

Z-Spar Flagship varnish offers the highest UV protection available.
Recommended clear finish.
